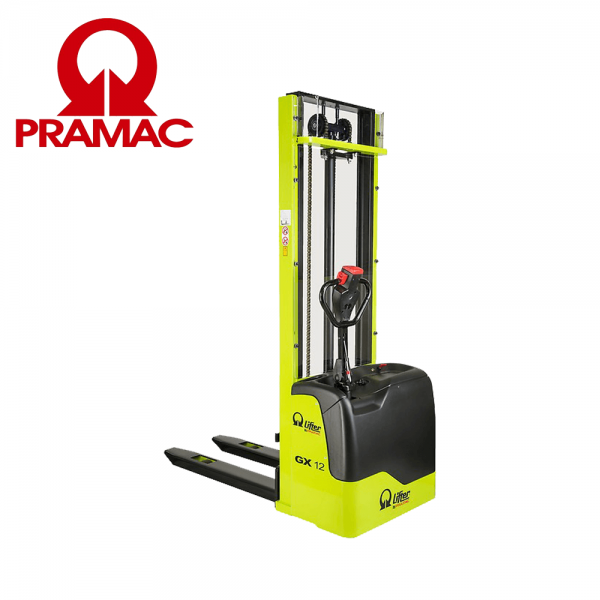

Stivuitor electric GX 12-29 BASIC PLUS AGM LIFTER PRAMAC

Stivuitor electric LIFTER PRAMAC GX 12/29 BASIC PLUS AGM FREE LIFT

THE COMPACT STACKER WITH LONG AUTONOMY

This compact, powerful and robust stacker is the ideal solution for working in confined spaces.

The reduced width (800 mm), the lateral driving system and the wide mast positioning allow great manoeuvrability, stability and visibility.

Built-in battery charger with integrated cable and plug make it a plug and play unit!

FREELIFT

This stacker is available with a total Free Lift configuration, enabling to rise the forks up to 1492 mm from the ground level, without increasing the minimum machine height (1965 mm).

This makes it possible to use the stacker even in workplaces characterized by reduced heights.

MANOEUVRABILITY

The overall width has the same size than the EuroPallet (800mm) allow the unit to work in narrow spaces and corridors, increase maneuverability and reducing the turning radius.

The combination of the lateral drive, the wide mast and the low carter offer outstanding visibility.

TILLER BASIC

Fully integrated hergonomic tiller system including finger tip throttle and fork controls, safety pushbutton, horn, and turtle button is the standard eqiipment of the GX BASIC

TURTLE MODE SWITCH

Offered as standard, this function enables operating the truck in confined spaces: it allows the unit to travel with the tiller in upright position.

This function is activated by pressing the turtle button on the tiller and rotating the drive control throttle. The truck travels at limited speed.

Release the button to disable this function.

COVER

Strong ABS carter/cover with storage compartments on top, easily removable to speed up maintenance operations. The bottom access opening allows an immediate disassembly of motor wheel, portal and tiller without lifting the machine. Schuko plug with spiral cable for an easy battery charging.

BATTERY PACK AGM

A separate compartment is the housing of AGM deep cycle batteries. Such batteries are powerful (110Ah), allow 3 hours endurance and don't need maintenance.

GEL batteries available on demand.

Descriere

1.1 Producător LIFTER PRAMAC INDUSTRIAL

1.3 Comandă ELECTRICĂ

1.4 Poziţie operare Pedestru

1.5 Capacitate maximă Q Kg 1200

1.6 Distanţa la centrul de aplicare al sarcinii c mm 600

1.8 Sarcina de la osie la capătul furcilor x mm 780

1.9 Ampatament y mm 1234

Greutăţi

2.1 Greutate de operare (acumulator inclus) Kg 615

2.2 Sarcină osie, încărcare pe spate Kg 1187

2.2 Sarcină osie, încărcare pe faţă Kg 628

2.3 Sarcină osie, liber faţă Kg 453

2.3 Sarcină osie, liber spate Kg 162

Cauciucuri/Şasiuri

3.1 Cauciucuri: roţi direcţie CAUCIUC

3.1 Cauciucuri: roţi stabilizatoare - Faţă POLY.C.

3.1 Cauciucuri: transportoare cu role POLY.C.

3.2 Mărime cauciuc: roţi direcţie - Lăţime mm 76

3.2 Mărime cauciuc: roţi direcţie - Diametru mm 250

3.3 Mărime cauciuc: transportoare cu role - Diametru mm 82

3.3 Mărime cauciuc: transportoare cu role - Lăţime mm 70

3.4 Mărime cauciuc: roţi stabilizatoare faţă - Diametru mm 100

3.4 Mărime cauciuc: roţi stabilizatoare faţă - Lăţime mm 38

3.5 Dimensiune cauciuc: roti spate nr 2

3.5 Dimensiune cauciuc: roti fata nr 1x+1

3.6 Ecartament, faţă b10 mm 565

3.7 Ecartament, spate b11 mm 410

Dimensiuni

4.2 Înălţime, catarg coborât h1 mm 1965

4.3 Înălţime de lucru fără încărcătură h2 mm 1402

4.4 Înălţime stivuitor h3 mm 2810

4.5 Înălţime, catarg ridicat h4 mm 3372

4.9 Înălţime manetă în poziţia de deplasare, max h14 mm 1330

4.9 Height of tiller in drive position min h14 mm 960

4.15 Înălţime, coborât h13 mm 90

4.19 Lungime globală l1 mm 1760

4.20 Distanţa până la suprafaţa frontală a furcilor l2 mm 609

4.21 Lăţime globală b1 mm 800

4.22 Dimensiuni furcă - grosime s mm 70

4.22 Dimensiuni furcă - Lăţime e mm 150

4.22 Dimensiuni furcă - Lungime l mm 1150

4.24 Lăţime furcă transpalet b3 mm 650

4.25 Distanţa între furci b5 mm 560

4.32 Gardă la sol şi mijloc ampatament m2 mm 20

4.34 Lăţime culoar Ast mm 2210

4.35 Rază de virare Wa mm 1430

Performante

5.1 Viteză de deplasare cu incarcare Km/h 4.7

5.1 Viteză de deplasare fără incarcare Km/h 5.2

5.10 Frână de serviciu REVERSE

CURRENT

BRAKING

Motoare electrice

6.6 Consum de energie în ciclu VDI kWh/h 0.9

8.4 Nivel sonor la nivelul urechii şoferului dB(A) 62

Elevare reziduală capacitate

Inalţimea de elevare (H3) 2500 mm Kg 1200

Inalţimea de elevare (H3) 2900 mm Kg 800
