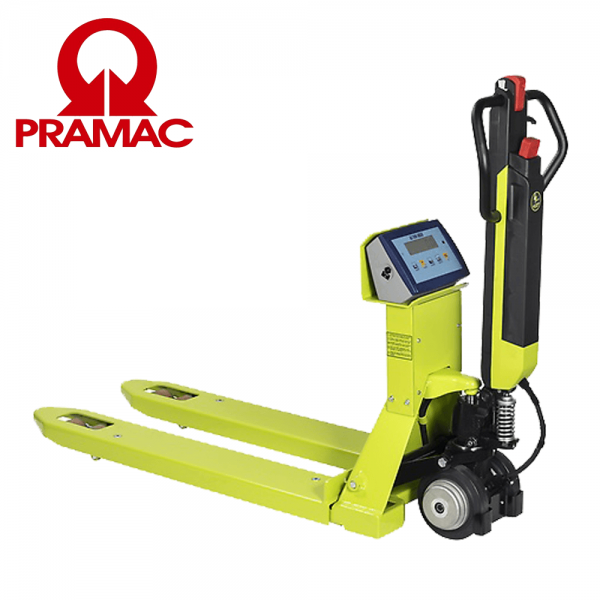

Transpalet electric cu cantar gs AGILE PLUS 12 S4 1185x555

LIZA ELECTRICA CU CANTAR

TRANSPALET ELECTRIC CU CANTAR LIFTER PRAMAC GS/P AGILE PLUS S4 1185X555

THE AGILE SCALE PALLET TRUCK

GS/P Agile plus

Agile motorized pallet truck with weight indicator combines electric and manual function for convenient usability. Compact, light, simple and easy to use, it also provides an accurate estimate of the weight of the load during the material handling process without delaying the handling of the goods. The machine can be equipped with supplements such as printer or USB, and thanks to the 4 load cells it is able to be very precise and functional; ideal for checking incoming goods, avoiding overloads and determining shipping weights.

SCALE TRUCK GS/P

The GS/P pallet truck is an intelligent and robust tool to be used for weighing and transporting your loads at the same time, making stock and dispatch processes faster, simpler and more efficient. The machine can be equipped with supplements such as printer or SD memory card and thanks to the 4 load cells it is able to be very precise and functional; ideal for checking incoming goods, avoiding overloads and determining shipping weights.

DISPLAY

Its large-sized 6 digits LCD display provides accurate and precise weighing in kg and lb. Its software allows not only net/gross/tare weighing but also unit counting, adding and totalling of multiple loads. Weights are shown in 1 kg/lb steps with 0,05% precision.

FRAME STRUCTURE

The structure is designed with a double frame consisting of a lower fork on which stands a counter fork. Both forks house two load cells allowing a uniform load distribution, and keeping high weighing accuracy even in case of collision and unbalanced load.

BATTERY and BATTERY CHARGER

The GS/P is supplied complete with rechargeable battery and charger. The battery module provides 50 hours autonomy.

PRINTER / USB

(Supplement , only available at time of order)

As supplement, the machine can be equipped with a built-in printer, able to print gross, tare and net weights (kg or lb), date, quantity of pieces on the scale. It may also be enriched with another supplement, the USB, allowing you to store

weighing data in a text file, for archiving and processing via PC.

AGILE PLUS

The AGILE PLUS is equipped with a Li-ION powerful BATTERY 36V 12,8Ah and the ON

BOARD COMPUTER with OLED display that supplies operator several information and the possibility to regulate the maximum travelling speed from 3,2 to 5,3 Km/h, adapting thus the operator experience to the specific application.

DOUBLE TRACTION WHEEL

The first pallet truck with two traction/steering wheels in the market. The big diameter (200mm) and tread (160mm) provide great stability without the needs of stabilizers.

Non-marking rubbers grant great traction and comfortable usage on all applications.

LI-ION BATTERY

Long life 36V battery easy to remove for charging and continuous operation with the spare battery.

Two types of charger available (bench and wall mounted) with standard and fast charging time.

HIGH SPEED

The two motorwheels grant high performances and make the AGILE the fastest of the category. The AC technology and the soft non-marking rubbers make the AGILE an extremely quiet unit.

ON-BOARD COMPUTER

Front OLED display with 6 selectable screens provides valuable info on truck activity and allows performance setup:

Pressing the central SCROLL button, operator can get information on:

- Battery status of charge (% of charge)

- Timers (total and partial in h)

- Odometer (total and partial in km)

- Speed setting (% of max speed)

- Diagnostic

- Error page

OPTIONS

• Quicklift hydraulic pump to lift the pallet in just two strokes

• Additional battery for continuos use

• Fast charging battery charger

Descriere

1.1 Producător LIFTER

1.3 Comandă ELECTRICĂ

1.4 Poziţie operare Pedestru

1.5 Capacitate maximă Q Kg 1200

1.6 Distanţa la centrul de aplicare al sarcinii c mm 600

1.8 Sarcina de la osie la capătul furcilor x mm 975,5

1.9 Ampatament y mm 1250

Greutăţi

2.1 Greutate de operare (acumulator inclus) Kg 128

2.2 Sarcină osie, încărcare pe spate Kg 884

2.2 Sarcină osie, încărcare pe faţă Kg 444

2.3 Sarcină osie, liber faţă Kg 83

2.3 Sarcină osie, liber spate Kg 45

Cauciucuri/Şasiuri

3.1 Cauciucuri: roţi direcţie POLY.I./

NYLON

3.1 Cauciucuri: transportoare cu role POLY.I.

3.2 Mărime cauciuc: roţi direcţie - Lăţime mm 40

3.2 Mărime cauciuc: roţi direcţie - Diametru mm 200

3.3 Mărime cauciuc: transportoare cu role - Diametru mm 82

3.3 Mărime cauciuc: transportoare cu role - Lăţime mm 60

3.5 Dimensiune cauciuc: roti spate nr 4

3.5 Dimensiune cauciuc: roti fata nr 2x

3.5 Ax de echilibru spate No

3.6 Ecartament, faţă b10 mm 162

3.7 Ecartament, spate b11 mm 375

Dimensiuni

4.4 Înălţime stivuitor h3 mm 115

4.9 Înălţime manetă în poziţia de deplasare, max h14 mm 1185

4.9 Height of tiller in drive position min h14 mm 710

4.15 Înălţime, coborât h13 mm 90

4.19 Lungime globală l1 mm 1660

4.20 Distanţa până la suprafaţa frontală a furcilor l2 mm 473

4.21 Lăţime globală b1 mm 555

4.22 Dimensiuni furcă - grosime s mm 60

4.22 Dimensiuni furcă - Lăţime e mm 180

4.22 Dimensiuni furcă - Lungime l mm 1185

4.25 Distanţa între furci b5 mm 555

4.32 Gardă la sol şi mijloc ampatament m2 mm 30

4.34 Lăţime culoar Ast mm 2109

4.35 Rază de virare Wa mm 1450

Performante

5.1 Viteză de deplasare cu incarcare Km/h 4,2

5.1 Viteză de deplasare fără incarcare Km/h 5,3

5.2 Viteză de ridicare, încărcat strokes 12

5.2 Viteză de ridicare, descărcat strokes 12

Cântar

Cifre Q.ty 6

Dimensiune cifră mm 25

Kilograme Yes

Livre Yes

Greutate proprie Yes

Oprire automata Yes

Totalizare Yes

Numărare Yes

Timp de funcţionare h 50

Precizie % 0.05

Celule de sarcină de tip forfecare Q.ty 4

6.4 Capacitate acumulator Ah 4
