Transpalet Liza INOX cu ridicare 1150x540

LIZA TRANSPALET INOX

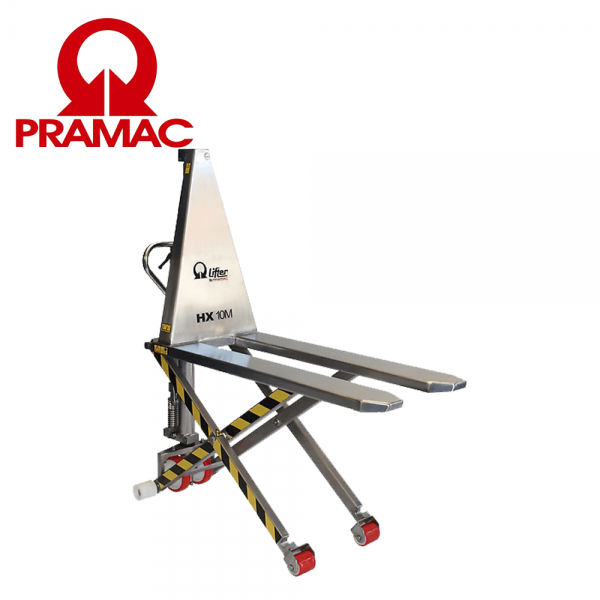

CU RIDICARE LA MARE INALTIME LIFTER PRAMAC HX10M 1150X540 INOX

ELEVATOR MARE INALTIME

STAINLESS STEEL MANUAL SCISSOR LIFT

STAINLESS STEEL

The HX10M stainless steel scissor lift makes possible an easy and light lifting to a

height of 800 mm thanks to the reliable manual hydraulic pump keeping the goods at

the suitable height to collect/deposit the loads, reducing the operator’s effort. Entirely

built in stainless steel AISI 304 (including the pump and piston) suitable to work in the

aggressive and corrosive environments where the cleaning and the hygiene are the

most required values and where there is serious problem of corrosion related to the

use of corrosive acids and saline solutions.

HYDRAULIC UNIT

Resistant and reliable one-piece stainless steel pump including:

• LIFTING PISTON: Monopiston type to allow max stability also with heavy loads and

granting great reliability

• MAXIMUM PRESSURE VALVE: safety device that ensures the transpallet against

overloads. When the pressure inside the hydraulic circuit exceeds the set calibration

value according to the maximum nominal flow, the valve automatically locks the forks.

REAR STABILIZERS

The control linkage makes possible the entry on the closed side of the pallet by a

slight lifting, which facilitates the successive handling phases. Furthermore, machine

stability is achieved by using load rollers in a more advanced position. Work is made

stable and safe with the rear stabilizers, also when the working height exceeds the

400 mm and in the case of heavy loads.

EQUIPPED FOR DEMANDING APPLICATIONS

AISI 304 stainless steel electro polished, sealed waterproof bearings, polyamide

bushings make HX10M INOX matching the food industry regulations. It is the ideal

and clean solution for the handling in the agrifood, chemical and pharmaceutical

industries. It is corrosion-proof, maneuverable and ergonomic and it is built to

withstand regular high-pressure cleaning and disinfection satisfying the strictest

hygienic regulations.

CERTIFICATIONS

The design of HX10 INOX Scissor Lift makes the machine compliant to:

UNI EN 1672-1: 2014 (product for alimentary business – basic concept)

UNI EN 1672-2: 2009 (product for alimentary business – hygienic concept)

OPTIONS

- Stainless steel AISI 316

- Tailor-made chassis to handle special loads

- Custom forks length and width

Descriere

1.3 Comandă Manual

1.4 Poziţie operare Pedestru

1.5 Capacitate maximă Q Kg 1000

1.6 Distanţa la centrul de aplicare al sarcinii c mm 600

1.8 Sarcina de la osie la capătul furcilor x mm 155

1.9 Ampatament y mm 1230

Greutăţi

2.1 Greutate de operare Kg 110

2.2 Sarcină osie, încărcare pe spate Kg 568

2.2 Sarcină osie, încărcare pe faţă Kg 542

2.3 Sarcină osie, liber faţă Kg 42

2.3 Sarcină osie, liber spate Kg 68

Cauciucuri/Şasiuri

3.2 Mărime cauciuc: roţi direcţie - Lăţime mm 85

3.2 Mărime cauciuc: roţi direcţie - Diametru mm 175

3.3 Mărime cauciuc: transportoare cu role - Diametru mm 82

3.3 Mărime cauciuc: transportoare cu role - Lăţime mm 90

3.5 Dimensiune cauciuc: roti spate nr 2

3.5 Dimensiune cauciuc: roti fata nr 2

3.6 Ecartament, faţă b10 mm 550

3.7 Ecartament, spate b11 mm 550

Dimensiuni

4.4 Înălţime stivuitor h3 mm 715

4.9 Height of tiller in drive position min h14 mm 1190

4.15 Înălţime, coborât h13 mm 85

4.19 Lungime globală l1 mm 1500

4.20 Distanţa până la suprafaţa frontală a furcilor l2 mm 355

4.21 Lăţime globală b1 mm 550

4.22 Dimensiuni furcă - grosime s mm 85

4.22 Dimensiuni furcă - Lăţime e mm 170

4.22 Dimensiuni furcă - Lungime l mm 1150

4.25 Distanţa între furci b5 mm 550

4.32 Gardă la sol şi mijloc ampatament m2 mm 15

4.34 Lăţime culoar Ast mm 1707

4.35 Rază de virare Wa mm 1345
