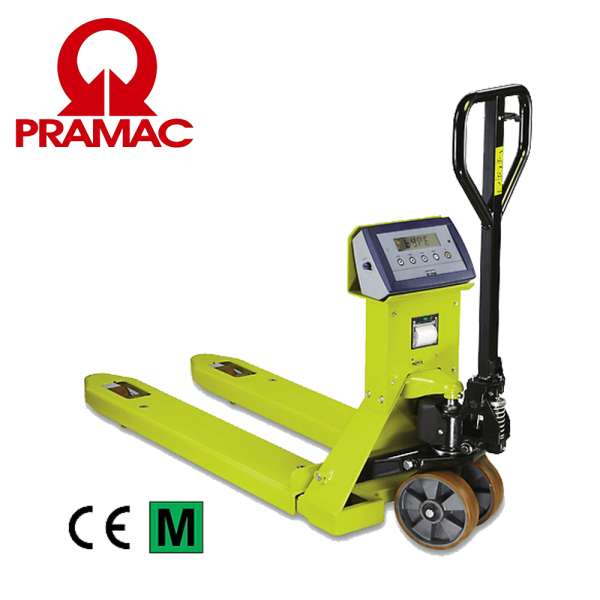

Transpalet manual cu cantar si bon GS 25S4 1185x555 mm

Transpalet Liza, cu cantar si tiparire de bon LIFTER PRAMAC GS/P 25S4 1185X555

THE HOMOLOGATED SCALE PALLET TRUCK

SCALE TRUCK GS/P

The GS/P pallet truck is an intelligent and robust tool to be used for weighing and transporting your loads at the same time, making stock and dispatch processes faster, simpler and more efficient. The machine can be equipped with supplements such as printer or SD memory card and thanks to the 4 load cells it is able to be very precise and functional; ideal for checking incoming goods, avoiding overloads and determining

shipping weights.

DISPLAY

Its large-sized 6 digits LCD display provides accurate and precise weighing in kg and lb. Its software allows not only net/gross/tare weighing but also unit counting, adding and totalling of multiple loads.

Weights are shown in 1 kg/lb steps with 0,05% precision.

FRAME STRUCTURE

The structure is designed with a double frame consisting of a lower fork on which stands a counter fork. Both forks house two load cells allowing a uniform load distribution, and keeping high weighing accuracy even in case of collision and unbalanced load.

BATTERY and BATTERY CHARGER

The GS/P is supplied complete with rechargeable battery and charger. The battery module provides 50 hours autonomy.

CONFIGURATION

STANDARD:

Nylon polyurethane steering wheels and polyurethane rollers

OPTIONAL:

Rubber steering wheels

PRINTER / USB

(Supplement , only available at time of order)

As supplement, the machine can be equipped with a built-in printer, able to print gross, tare and net weights (kg or lb), date, quantity of pieces on the scale.

It may also be enriched with another supplement, the USB, allowing you to store

weighing data in a text file, for archiving and processing via PC.

Descriere

1.1 Producător LIFTER

1.3 Comandă Manual

1.4 Poziţie operare Pedestru

1.5 Capacitate maximă Q Kg 2500

1.6 Distanţa la centrul de aplicare al sarcinii c mm 600

1.8 Sarcina de la osie la capătul furcilor x mm 975

1.9 Ampatament y mm 1250

Greutăţi

2.1 Greutate de operare (acumulator inclus) Kg 117

2.2 Sarcină osie, încărcare pe spate Kg 1836

2.2 Sarcină osie, încărcare pe faţă Kg 781

2.3 Sarcină osie, liber faţă Kg 71

2.3 Sarcină osie, liber spate Kg 46

Cauciucuri/Şasiuri

3.1 Cauciucuri: roţi direcţie POLY.I./

NYLON

3.1 Cauciucuri: transportoare cu role POLY.I.

3.2 Mărime cauciuc: roţi direcţie - Lăţime mm 55

3.2 Mărime cauciuc: roţi direcţie - Diametru mm 200

3.3 Mărime cauciuc: transportoare cu role - Diametru mm 82

3.3 Mărime cauciuc: transportoare cu role - Lăţime mm 60

3.5 Dimensiune cauciuc: roti spate nr 4

3.5 Dimensiune cauciuc: roti fata nr 2

3.5 Ax de echilibru spate No

3.6 Ecartament, faţă b10 mm 155

3.7 Ecartament, spate b11 mm 375

Dimensiuni

4.4 Înălţime stivuitor h3 mm 115

4.9 Height of tiller in drive position min h14 mm 690

4.9 Înălţime manetă în poziţia de deplasare, max h14 mm 1160

4.15 Înălţime, coborât h13 mm 90

4.19 Lungime globală l1 mm 1596

4.20 Distanţa până la suprafaţa frontală a furcilor l2 mm 411

4.21 Lăţime globală b1 mm 555

4.22 Dimensiuni furcă - grosime s mm 60

4.22 Dimensiuni furcă - Lăţime e mm 180

4.22 Dimensiuni furcă - Lungime l mm 1185

4.25 Distanţa între furci b5 mm 555

4.32 Gardă la sol şi mijloc ampatament m2 mm 30

4.34 Lăţime culoar Ast mm 1851

4.35 Rază de virare Wa mm 1426

Performante

5.2 Viteză de ridicare, încărcat strokes 13

5.2 Viteză de ridicare, descărcat strokes 13

Cântar

Tip DFW 06 XPCA

Cifre Q.ty 6

Dimensiune cifră mm 25

Kilograme Yes

Livre Yes

Greutate proprie Yes

Oprire automata Yes

Totalizare Yes

Numărare Yes

Timp de funcţionare h 50

Precizie % 0.05

Celule de sarcină de tip forfecare Q.ty 4

6.4 Capacitate acumulator Ah 4
