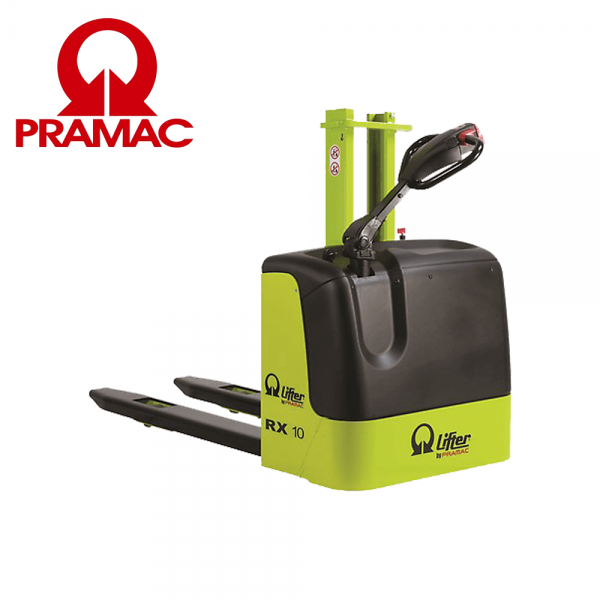

Stivuitor electric RX 10-16 EVO AUTOLEVELING LIFTER PRAMAC

STIVUITOR ELECTRIC PROFESIONAL RX 10/16 EVO PLUS AUTOLEVELING

FULLY LOADED COMPACT MONOMAST STACKER

RX

RX is the most compact in the stackers’ range, single mast, completely electric, suitable for loads up to 1.000 kg, allowing a comfortable, safe use, with low maintenance costs, thanks to robust design with easy access for maintenance. RX combines compactness and ergonomics, covering a wide range of daily applications in the "light duty" area (not for continuous use).

RX EVO

The EVO version is equipped with powerful semitraction batteries that allow long endurance and large number of charging cycles. The ergonomic technopolymer tiller offers a comfortable grip. A specific electronic control enables lifting the forks with a proportional usage.

TILLER EVOLUTION

Fully integrated ergonomic technopolymer tiller system including finger tip throttle and proportional fork controls, safety pushbutton, horn, turtle button, hourmeter, battery status indicator as standard equipment.

TURTLE MODE SWITCH

Offered as standard, this function enables operating the truck in confined spaces: it allows the unit to travel with the tiller in upright position.

This function is activated by pressing the turtle button on the tiller and rotating the drive control throttle. The truck travels at limited speed.

Release the button to disable this function.

VERSATILITY

It's ideal to mode, even horizontally, palletized goods and at the same time it can be used as an adjustable workable, reducing stress for the operator who must place goods on a shelf. Forks thickness 60 mm for an easier entrance inside pallet, while working in elevation.

EASY MAINTENANCE

Strong ABS carter/cover with storage compartments on top.

Easily removable to speed up maintenance operations.

The bottom access opening allows an immediate disassembly of motor wheel, portal and tiller without lifting the machine.

ERGONOMICS

Ergonomic tiller placed laterally to increase visibility, ensuring an optimal arrangement of components inside the motor compartment. RX 10 solves perfectly the problem of handling goods in narrow spaces and corridors.

BATTERY PACK

Light-traction with tubular plate batteries allow up to 4 hours autonomy and a high number of charging cycle.

GEL (OPTIONAL)

GEL batteries available on demand.

Descriere

1.1 Producător LIFTER PRAMAC

INDUSTRIAL

1.3 Comandă ELECTRIC

1.4 Poziţie operare Pedestru

1.5 Capacitate maximă Q Kg 1000

1.6 Distanţa la centrul de aplicare al sarcinii c mm 600

1.8 Sarcina de la osie la capătul furcilor x mm 786

1.9 Ampatament y mm 1165

Greutăţi

2.1 Greutate de operare (acumulator inclus) Kg 371

2.2 Sarcină osie, încărcare pe spate Kg 937

2.2 Sarcină osie, încărcare pe faţă Kg 434

2.3 Sarcină osie, liber faţă Kg 269

2.3 Sarcină osie, liber spate Kg 102

Cauciucuri/Şasiuri

3.1 Cauciucuri: roţi direcţie CAUCIUC

3.1 Cauciucuri: roţi stabilizatoare - Faţă POLY C.

3.1 Cauciucuri: transportoare cu role POLY C.

3.2 Mărime cauciuc: roţi direcţie - Lăţime mm 50

3.2 Mărime cauciuc: roţi direcţie - Diametru mm 186

3.3 Mărime cauciuc: transportoare cu role - Diametru mm 82

3.3 Mărime cauciuc: transportoare cu role - Lăţime mm 70

3.4 Mărime cauciuc: roţi stabilizatoare faţă - Diametru mm 125

3.4 Mărime cauciuc: roţi stabilizatoare faţă - Lăţime mm 45

3.5 Dimensiune cauciuc: roti spate nr 2

3.5 Dimensiune cauciuc: roti fata nr 1x

3.6 Ecartament, faţă b10 mm 505

3.7 Ecartament, spate b11 mm 410

Dimensiuni

4.2 Înălţime, catarg coborât h1 mm 1970

4.3 Înălţime de lucru fără încărcătură h2 mm 1510

4.4 Înălţime stivuitor h3 mm 1510

4.5 Înălţime, catarg ridicat h4 mm 1970

4.9 Înălţime manetă în poziţia de deplasare, max h14 mm 1338

4.9 Height of tiller in drive position min h14 mm 968

4.15 Înălţime, coborât h13 mm 90

4.19 Lungime globală l1 mm 1675

4.20 Distanţa până la suprafaţa frontală a furcilor l2 mm 522

4.21 Lăţime globală b1 mm 794

4.22 Dimensiuni furcă - grosime s mm 60

4.22 Dimensiuni furcă - Lăţime e mm 150

4.22 Dimensiuni furcă - Lungime l mm 1153

4.24 Lăţime furcă transpalet b3 mm 650

4.25 Distanţa între furci b5 mm 560

4.32 Gardă la sol şi mijloc ampatament m2 mm 30

4.34 Lăţime culoar Ast mm 2120

4.35 Rază de virare Wa mm 1344

Performante

5.1 Viteză de deplasare cu incarcare Km/h 3.7

5.1 Viteză de deplasare fără incarcare Km/h 4.3

5.10 Frână de serviciu REVERSE

CURRENT

Motoare electrice

6.6 Consum de energie în ciclu VDI kWh/h 0.45

8.4 Nivel sonor la nivelul urechii şoferului dB(A) 63

Battery and battery charger integrated
