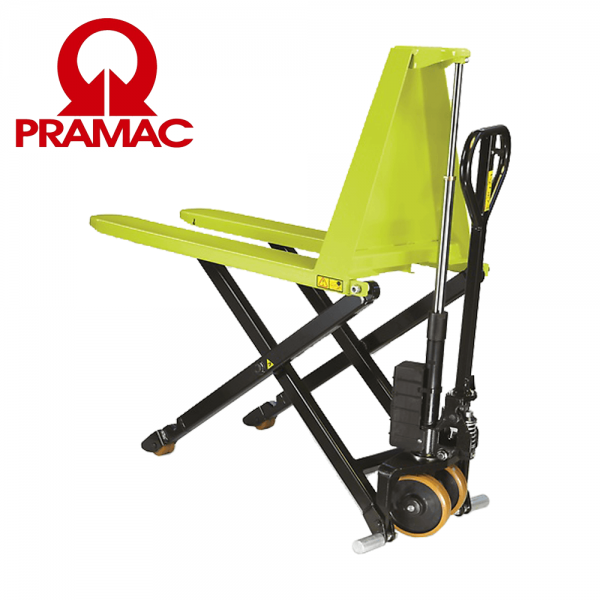

Transpalet cu ridicare HPT HX10M 1500x540

Transpalet Liza cu ridicare LIFTER PRAMAC HX10M 1500X540

HIGH LIFT PALLET TRUCK - MANUAL

HX10 M

The HX10M scissor Lift makes possible an easy and light lifting to a height of 800 mm, becoming a practical work platform, suitable for places such as machine workshops.

This pallet truck is also able to carry out the support function and material supply along the assembly and production lines.

CONTROL LEVER

The handle offers an ergonomic tiller and a 3 positions control lever.

The special lowering valve allows you to smoothly lower the load.

HYDRAULIC UNIT

Resistant and reliable one piece cast iron pump including:

• TWO-STAGE TELESCOPIC LIFTING PISTON: to allow working with low profile frame granting lightness and better operator visibility.

• MAXIMUM PRESSURE VALVE: safety device that ensures the transpallet against overloads. When the pressure inside the hydraulic circuit exceeds the set calibration value according to the maximum nominal flow, the valve automatically locks the forks.

• PROPORTIONAL LOWERING VALVE: lowering speed can be proportionally controlled according to the lever position on the tiller. Perfect working tool to carry fragile and delicate loads like crystal, glass and ceramics.

FRONT AND REAR STABILIZERS

The new control linkage makes possible the entry on the closed side of the pallet by a slight lifting, which facilitates the successive handling phases.

Furthermore, greater machine stability is achieved by using load rollers in a more advanced position and providing front stabilizers as standard.

Work is made even more stable and safer with the rear stabilizers, also when the working height exceeds the 400 mm and in the case of heavy objects.

CONFIGURATION

STANDARD:

Nylon polyurethane steering wheels and polyurethane rollers

Quick lift. The perfect tool to lift quicker your loads up to 150 kg. The hydraulic pump is specifically engineered to cut by half the job time and increase efficiency.

OPTIONAL:

Rubber steering wheels

Descriere

1.1 Producător LIFTER

1.3 Comandă Manual

1.4 Poziţie operare Pedestru

1.5 Capacitate maximă Q Kg 1000

1.6 Distanţa la centrul de aplicare al sarcinii c mm 762

1.8 Sarcina de la osie la capătul furcilor x mm 1283

1.9 Ampatament y mm 1531

Greutăţi

2.1 Greutate de operare (acumulator inclus) Kg 200

2.2 Sarcină osie, încărcare pe spate Kg 742

2.2 Sarcină osie, încărcare pe faţă Kg 458

2.3 Sarcină osie, liber faţă Kg 117

2.3 Sarcină osie, liber spate Kg 83

Cauciucuri/Şasiuri

3.1 Cauciucuri: roţi direcţie POLY.I./

NYLON

3.1 Cauciucuri: transportoare cu role POLY.I.

3.2 Mărime cauciuc: roţi direcţie - Lăţime mm 45

3.2 Mărime cauciuc: roţi direcţie - Diametru mm 200

3.3 Mărime cauciuc: transportoare cu role - Diametru mm 80

3.3 Mărime cauciuc: transportoare cu role - Lăţime mm 50

3.5 Dimensiune cauciuc: roti spate nr 2

3.6 Ecartament, faţă b10 mm 155

3.7 Ecartament, spate b11 mm 447

Dimensiuni

4.4 Înălţime stivuitor h3 mm 715

4.9 Înălţime manetă în poziţia de deplasare, max h14 mm 1250

4.9 Height of tiller in drive position min h14 mm 415

4.15 Înălţime, coborât h13 mm 85

4.19 Lungime globală l1 mm 1910

4.20 Distanţa până la suprafaţa frontală a furcilor l2 mm 376

4.21 Lăţime globală b1 mm 540

4.22 Dimensiuni furcă - grosime s mm 48

4.22 Dimensiuni furcă - Lăţime e mm 160

4.22 Dimensiuni furcă - Lungime l mm 1525

4.25 Distanţa între furci b5 mm 540

4.32 Gardă la sol şi mijloc ampatament m2 mm 21

4.34 Lăţime culoar Ast mm 2275

4.35 Rază de virare Wa mm 1666
