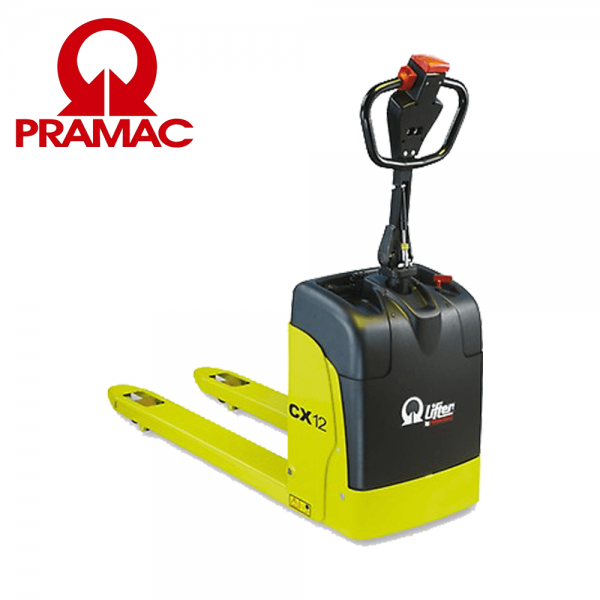

Transpalet electric LIFTER PRAMAC CX12 S2 1150x520 AC EVO

TRANSPALET ELECTRIC

PROFESIONAL LIFTER PRAMAC CX12 S2 1150X520 EVO

POWERFUL, COMPACT, MANOEUVRABLE

CX12

The CX12 electric pallet truck is suitable for carrying loads on smooth or paved surfaces. Its small size and turning radius make it the ideal tool to work with in confined spaces, such as lorries or narrow aisles.

EVO

EVO version is specifically designed to provide higher performance, reliability and speed through the innovative powerful three-phase AC technology, while reducing noise emission and overheating of the motor wheel.

AC TECHNOLOGY CONTROLLER

Powerful AC drive motor offering many advantages and more efficiency: higher level of duty, performance and reliability.

EVO BATTERY PACK

Strong ABS cover with storage tray on top, easily removable for a simple access to batteries and key components speeding up maintenance operations.

Schuko plug with spiral cable available for an easy charging.

TILLER EVOLUTION EPT

Fully integrated ergonomic technopolymer tiller system including fingertip throttle and fork controls, safety pushbutton, horn, turtle button, hour meter, battery status indicator as standard equipment.

TURTLE FUNCTION

Ergonomic dedicated button as standard for moving the unit in tight areas with the handle in vertical position while remaining almost within the profile of the machine.

EMERGENCY PUSH BUTTON

Very practical system with key and emergency function in the same button. The key is removable and pocket-sized when the operator leaves the machine unattended.

ROLLERS

Standard configuration provided with single polyurethane rollers. Available tandem rollers as optional.

Descriere

1.1 Producător LIFTER

Stivuitor ELECTRIC

1.3 Comandă ELECTRIC

1.4 Poziţie operare Pedestru

1.5 Capacitate maximă Q Kg 1200

1.6 Distanţa la centrul de aplicare al sarcinii c mm 600

1.8 Sarcina de la osie la capătul furcilor x mm 886

1.9 Ampatament y mm 1119

Greutăţi

2.1 Greutate de operare (acumulator inclus) Kg 165

2.2 Sarcină osie, încărcare pe spate Kg 924

2.2 Sarcină osie, încărcare pe faţă Kg 441

2.3 Sarcină osie, liber faţă Kg 134

2.3 Sarcină osie, liber spate Kg 31

Cauciucuri/Şasiuri

3.1 Cauciucuri: roţi direcţie CAUCIUC

3.1 Cauciucuri: roţi stabilizatoare - Faţă POLY.I.

3.1 Cauciucuri: transportoare cu role NYLON

3.2 Mărime cauciuc: roţi direcţie - Lăţime mm 50

3.2 Mărime cauciuc: roţi direcţie - Diametru mm 186

3.3 Mărime cauciuc: transportoare cu role - Diametru mm 82

3.3 Mărime cauciuc: transportoare cu role - Lăţime mm 82

3.4 Mărime cauciuc: roţi stabilizatoare faţă - Diametru mm 75

3.4 Mărime cauciuc: roţi stabilizatoare faţă - Lăţime mm 25

3.5 Dimensiune cauciuc: roti spate nr 2

3.5 Dimensiune cauciuc: roti fata nr 1x

3.6 Ecartament, faţă b10 mm 369

3.7 Ecartament, spate b11 mm 371

Dimensiuni

4.4 Înălţime stivuitor h3 mm 115

4.9 Height of tiller in drive position min h14 mm 885

4.9 Înălţime manetă în poziţia de deplasare, max h14 mm 1345

4.15 Înălţime, coborât h13 mm 85

4.19 Lungime globală l1 mm 1510

4.20 Distanţa până la suprafaţa frontală a furcilor l2 mm 360

4.21 Lăţime globală b1 mm 520

4.22 Dimensiuni furcă - grosime s mm 55

4.22 Dimensiuni furcă - Lăţime e mm 150

4.22 Dimensiuni furcă - Lungime l mm 1150

4.25 Distanţa între furci b5 mm 520

4.32 Gardă la sol şi mijloc ampatament m2 mm 30

4.34 Lăţime culoar Ast mm 1782

4.35 Rază de virare Wa mm 1268

Performante

5.1 Viteză de deplasare cu incarcare Km/h 5.0

5.1 Viteză de deplasare fără incarcare Km/h 5.0

5.10 Frână de serviciu REVERSE

CURRENT

BRAKING

Motoare electrice

6.6 Consum de energie în ciclu VDI kWh/h 0.28

8.4 Nivel sonor la nivelul urechii şoferului dB(A) 67

*Integrated battery and battery charger
