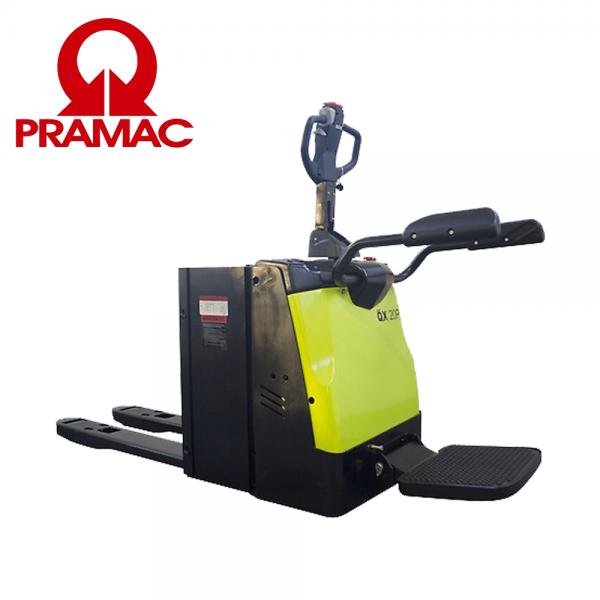

Transpalet electric LIFTER QX20P EVO AC S4 1000x685 cu baterie 375Ah

LIZA TRANSPALET LIFTER PRAMAC

LIZE PROFESIONALE TRANSPALETI PROFESIONALI QX20P EVO AC S4 1000X685

Transpalet electric cu baterie inclusa 375Ah

MAXIMUM PERFORMANCE AND VERSATILITY

QX20P EVO EPT

The new QX is the perfect electric pallet truck suitable for heavy duty applications, ideal for transport over medium-long distances. State-of-the-art proven technology, powerful and reliable motors, excellent manoeuvrability thanks to the compact dimensions, make this products the most competitive solution for intensive logistic application, such as loading/unloading of lorries, even in multi shift uses.

HIGH PERFORMANCE

The QX20 P EVO is equipped with electric power steering, three phase AC motor wheel, and foldable platform with robust side arms. This combination together with high travelling speed makes the unit comfortable, efficient and easy to drive on long distance and intensive logistic application. The European made traction battery with 12 DIN elements grants long autonomy and long lifetime.

OPERATOR PLATFORM

The truck is equipped with cushioned, suspended, stand-on foldable platform very useful for long-distance material transport and intensive application.

SIDE ARMS

Foldable side arms provide the operator with maximum comfort and stability when manoeuvring.

ZAPI CONTROLLER

AC technology guarantees more energy efficiency and longer battery charging duration, thus reducing maintenance cost. Furthermore the absence of brushes in the motor and the simpler motor structure increase system reliability.

TILLER EVOLUTION EPT

Fully integrated ergonomic technopolymer tiller system including fingertip throttle and fork controls, safety pushbutton, horn, turtle button, hour meter, battery status indicator as standard equipment.

CURVE SPEED CONTROL

Variable maximum speed depending on the turning angle increases the manoeuvrability and the safety of the truck.

BATTERY COMPARTMENT QX

The separate battery compartment allows the installation of high capacity battery (375Ah). The battery inspection is easy and comfortable through the battery cover with hinges. The external high frequency battery charger can be easily plugged trough

Anderson connector.

AQUAMATIC SYSTEM

As option automatic battery refilling system can be supplied to increase productivity, lower operating expenses and prevent damage to the battery that can occur due to insufficient refilling.

MOTOR WHEEL

Lifting and traction motors have both a voltage of 24 Volt. The vertical assembly not only allows a more rapid access to all the parts but also minimizes room cluttering-up and wiring stress.

KEY SWITCH AND NOTE HOLDER

The machine is equipped with a key switch placed on an accessible and protected position. The robust battery cover integrates a clip holder for an easy fixing of documents and notes.

FORKS

Durable and long-lasting fork tips for easy and effortless entry/exit to/from pallet. The machine is offered as standard with heavy duty polyurethane tandem rollers.

EASY MAINTENANCE

Removing the strong cover allows to have the access to electric and hydraulic system as to the motorwheel and stabilizing wheels.

BACKREST (OPTION)

Load backrest accessory to guarantee total safety during work, preventing loads falling on operator side.

Descriere

1.1 Producător PR

INDUSTRIAL

Stivuitor ELECTRICĂ

1.3 Comandă ELECTRICĂ

1.4 Poziţie operare Pedestrian/

Platforma

1.5 Capacitate maximă Q Kg 2000

1.6 Distanţa la centrul de aplicare al sarcinii c mm 500

1.8 Sarcina de la osie la capătul furcilor x mm 832

1.9 Ampatament y mm 1268

Greutăţi

2.1 Greutate de operare Kg 780

2.2 Sarcină osie, încărcare pe spate Kg 1708

2.2 Sarcină osie, încărcare pe faţă Kg 1072

2.3 Sarcină osie, liber faţă Kg 639

2.3 Sarcină osie, liber spate Kg 141

Cauciucuri/Şasiuri

3.2 Mărime cauciuc: roţi direcţie - Lăţime mm 230

3.2 Mărime cauciuc: roţi direcţie - Diametru mm 75

3.3 Mărime cauciuc: transportoare cu role - Diametru mm 85

3.3 Mărime cauciuc: transportoare cu role - Lăţime mm 70

3.4 Mărime cauciuc: roţi stabilizatoare faţă - Diametru mm 130

3.4 Mărime cauciuc: roţi stabilizatoare faţă - Lăţime mm 60

3.5 Dimensiune cauciuc: roti spate nr 1x+2

3.5 Dimensiune cauciuc: roti fata nr 4

3.6 Ecartament, faţă b10 mm 515

3.7 Ecartament, spate b11 mm 510

Dimensiuni

4.4 Înălţime stivuitor h3 mm 125

4.9 Height of tiller in drive position min h14 mm 1150

4.9 Înălţime manetă în poziţia de deplasare, max h14 mm 1470

4.15 Înălţime, coborât h13 mm 85

4.19 Lungime globală cu platformă coborâtă l1 mm 2137

4.19 Lungime globală cu platformă ridicată l1 mm 1710

4.20 Distanţa până la suprafaţa frontală a furcilor cu

platforma coborâtă

l2 mm 1137

4.20 Distanţa până la suprafaţa frontală a furcilor cu

platforma ridicată

l2 mm 710

4.21 Lăţime globală b1 mm 730

4.22 Dimensiuni furcă - grosime s mm 55

4.22 Dimensiuni furcă - Lăţime e mm 170

4.22 Dimensiuni furcă - Lungime l mm 1000

4.25 Distanţa între furci b5 mm 685

4.32 Gardă la sol şi mijloc ampatament m2 mm 30

4.34 Lăţime culoar cu platforma coborâtă Ast mm 2721

4.34 Lăţime culoar cu platforma ridicată Ast mm 2294

4.35 Rază de virare cu platformă coborâtă Wa mm 1977

4.35 Rază de virare cu platforma ridicată Wa mm 1550

Performante

5.1 Viteză de deplasare cu incarcare Km/h 9

5.1 Viteză de deplasare fără incarcare Km/h 12

Motoare electrice

8.4 Nivel sonor la nivelul urechii şoferului dB(A) 74
