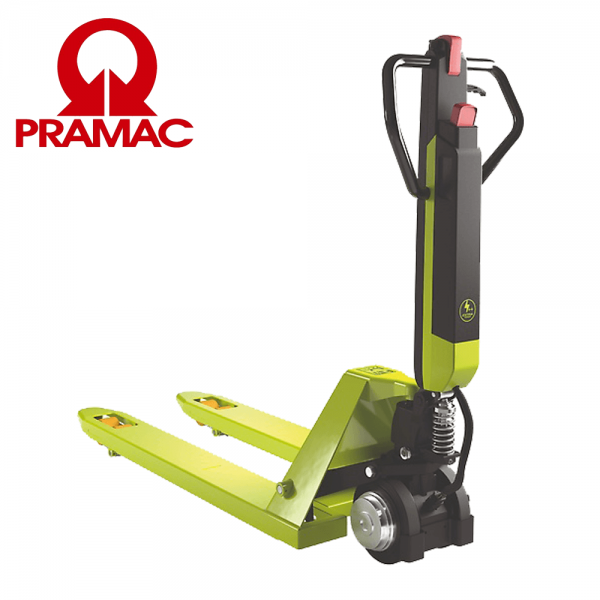

Transpalet electric Liza electrica AGILE PLUS 12S4 1150x525

TRANSPALET ELECTRIC PROFESIONAL AGILE PLUS S4 1150X525

LIZA ELECTRICA PROFESIONALA LIFTER PRAMAC

THE INNOVATIVE PALLET TRUCK (1.200 KG)

AGILE TRANSPALETE ELECTRICE

The innovative motorized pallet truck that combines electric and manual function for convenient usability.

Compact, light, simple and easy to use, AGILE is the perfect pallet truck to minimize the operator effort, increasing efficiency and safety. Ideal in deliveries, supermarket, and retail shop, it can be used by everyone.

AGILE PLUS

The AGILE PLUS is equipped with a Li-ION powerful BATTERY 36V 12,8Ah and the ON

BOARD COMPUTER with OLED display that supplies operator several information and the possibility to regulate the maximum travelling speed from 3,2 to 5,3 Km/h, adapting thus the operator experience to the specific application.

DOUBLE TRACTION WHEEL

The first pallet truck with two traction/steering wheels in the market. The big diameter (200mm) and tread (160mm) provide great stability without the needs of stabilizers.

Non-marking rubbers grant great traction and comfortable usage on all applications.

LI-ION BATTERY

Long life 36V battery easy to remove for charging and continuous operation with the spare battery.

Two types of charger available (bench and wall mounted) with standard and fast charging time.

HIGH SPEED

The two motorwheels grant high performances and make the AGILE the fastest of the category. The AC technology and the soft non-marking rubbers make the AGILE an extremely quiet unit.

ALL FRAMES USE

Separate drive unit can be combined with frames of any size or metal (steel painted, galvanized, stainless steel) with a low impact cost and short delivery time. Please ask to your Pramac dealer for the combination requested.

ON-BOARD COMPUTER

Front OLED display with 6 selectable screens provides valuable info on truck activity and allows performance setup:

Pressing the central SCROLL button, operator can get information on:

- Battery status of charge (% of charge)

- Timers (total and partial in h)

- Odometer (total and partial in km)

- Speed setting (% of max speed)

- Diagnostic

- Error page

OPTIONS

• Quicklift hydraulic pump to lift the pallet in just two strokes

• Additional battery for continuos use

• Fast charging battery charger

Descriere

1.1 Producător PR

INDUSTRIAL

Stivuitor Manual

1.3 Comandă ELECTRICĂ

1.4 Poziţie operare Pedestru

1.5 Capacitate maximă Q Kg 1200

1.6 Distanţa la centrul de aplicare al sarcinii c mm 600

1.8 Sarcina de la osie la capătul furcilor x mm 932

1.9 Ampatament y mm 1192

Greutăţi

2.1 Greutate de operare (acumulator inclus) Kg 88

2.2 Sarcină osie, încărcare pe spate Kg 891

2.2 Sarcină osie, încărcare pe faţă Kg 395

2.3 Sarcină osie, liber faţă Kg 59

2.3 Sarcină osie, liber spate Kg 27

Cauciucuri/Şasiuri

3.1 Cauciucuri: roţi direcţie CAUCIUC

3.1 Cauciucuri: roţi stabilizatoare - Faţă POLY.I.

3.1 Cauciucuri: transportoare cu role NYLON

3.2 Mărime cauciuc: roţi direcţie - Lăţime mm 40

3.2 Mărime cauciuc: roţi direcţie - Diametru mm 200

3.3 Mărime cauciuc: transportoare cu role - Diametru mm 82

3.3 Mărime cauciuc: transportoare cu role - Lăţime mm 60

3.5 Dimensiune cauciuc: roti spate nr 4

3.5 Dimensiune cauciuc: roti fata nr 2x

3.6 Ecartament, faţă b10 mm 162

3.7 Ecartament, spate b11 mm 375

Dimensiuni

4.4 Înălţime stivuitor h3 mm 115

4.9 Înălţime manetă în poziţia de deplasare, max h14 mm 1185

4.9 Height of tiller in drive position min h14 mm 710

4.15 Înălţime, coborât h13 mm 85

4.19 Lungime globală l1 mm 1600

4.20 Distanţa până la suprafaţa frontală a furcilor l2 mm 450

4.21 Lăţime globală b1 mm 525

4.22 Dimensiuni furcă - grosime s mm 55

4.22 Dimensiuni furcă - Lăţime e mm 150

4.22 Dimensiuni furcă - Lungime l mm 1150

4.25 Distanţa între furci b5 mm 525

4.32 Gardă la sol şi mijloc ampatament m2 mm 30

4.34 Lăţime culoar Ast mm 2063

4.35 Rază de virare Wa mm 1382

Performante

5.1 Viteză de deplasare cu incarcare Km/h 4.2

5.1 Viteză de deplasare fără incarcare Km/h 5.3

5.2 Viteză de ridicare, încărcat strokes 12

5.2 Viteză de ridicare, descărcat strokes 12

5.10 Frână de serviciu REVERSE

CURRENT

BRAKING

Motoare electrice

8.4 Nivel sonor la nivelul urechii şoferului dB(A) 60
