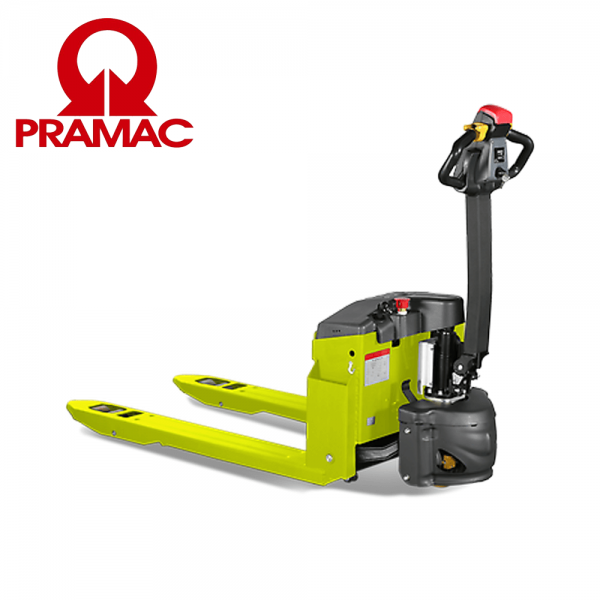

Transpalet electric Liza electrica EX15 S2 1150x560 PRAMAC

TRANSPALET ELECTRIC PROFESIONAL EX15 1150X560

CONVENIENT, EASY TO USE

EX15

The new EX15 Electric Pallet Truck is the economic solution for your daily light-duty logistic operation. Simple and easy to use thanks to the compact size, low weight, maintenance free AGM battery and on-board charger, the EX15 can carries loads up to 1500 kg also on rampes.

MANOEUVRABILITY

The overall width of the machine matches with the fork width (540 mm). This makes the unit as compact as possible and, together with the reduced turning radius (1485 mm), enables to work in narrow spaces.

ROBUSTENESS

Robust frame designed to guarantee maximum durability and resistance to torsion and loads.

Fork tips shaped for an easier entrance/exit on the closed side of the pallet.

SAFETY

Emergency push button, belly button and electro brake are the standard safety features of the machine.

The cover for driving wheel protects the operator's feet during work and secures the truck's components from collision with objects.

ON-BOARD BATTERY CHARGER

Built-in battery charger provides a convenient charging solution and eliminates the need to remove the battery form the machine.

The on-board spiral cable and plug allow the battery charging on every schuko socket.

TILLER

Fully integrated ergonomic technopolymer tiller with key switch, including fingertip throttle and fork controls, safety pushbutton, horn, and display showing battery status

BDI and trouble shooting as standard equipment.

EASY MAINTENANCE

Simple construction with a design that allows a really easy maintenance.

The access to motorwheel and the battery compartment can be done just removing few bolts and without lifting the unit.

Descriere

1.1 Producător PR

INDUSTRIAL

Stivuitor ELECTRICĂ

1.3 Comandă ELECTRICĂ

1.4 Poziţie operare Pedestru

1.5 Capacitate maximă Q Kg 1500

1.6 Distanţa la centrul de aplicare al sarcinii c mm 600

1.8 Sarcina de la osie la capătul furcilor x mm 883

1.9 Ampatament y mm 1202

Greutăţi

2.1 Greutate de operare Kg 195

2.2 Sarcină osie, încărcare pe spate Kg 1128

2.2 Sarcină osie, încărcare pe faţă Kg 567

2.3 Sarcină osie, liber faţă Kg 155

2.3 Sarcină osie, liber spate Kg 40

Cauciucuri/Şasiuri

3.2 Mărime cauciuc: roţi direcţie - Lăţime mm 70

3.2 Mărime cauciuc: roţi direcţie - Diametru mm 210

3.3 Mărime cauciuc: transportoare cu role - Diametru mm 78

3.3 Mărime cauciuc: transportoare cu role - Lăţime mm 88

3.5 Dimensiune cauciuc: roti spate nr 2

3.5 Dimensiune cauciuc: roti fata nr 1x

3.6 Ecartament, faţă b10 mm 448

3.7 Ecartament, spate b11 mm 410

Dimensiuni

4.4 Înălţime stivuitor h3 mm 115

4.9 Height of tiller in drive position min h14 mm 750

4.9 Înălţime manetă în poziţia de deplasare, max h14 mm 1170

4.15 Înălţime, coborât h13 mm 80

4.19 Lungime globală l1 mm 1638

4.20 Distanţa până la suprafaţa frontală a furcilor l2 mm 488

4.20 Distanţa până la suprafaţa frontală a furcilor cu

platforma coborâtă

l2 mm 488

4.21 Lăţime globală b1 mm 560

4.22 Dimensiuni furcă - grosime s mm 50

4.22 Dimensiuni furcă - Lăţime e mm 150

4.22 Dimensiuni furcă - Lungime l mm 1150

4.25 Distanţa între furci b5 mm 560

4.32 Gardă la sol şi mijloc ampatament m2 mm 30

4.34 Lăţime culoar Ast mm 1939

4.35 Rază de virare Wa mm 1485

Performante

5.1 Viteză de deplasare cu incarcare Km/h 4,0

5.1 Viteză de deplasare fără incarcare Km/h 4,5

Motoare electrice

6.6 Consum de energie în ciclu VDI kWh/h 0,28

8.4 Nivel sonor la nivelul urechii şoferului dB(A) 74
