Transpalet electric profesional CX14 AC EVO AGM S2 1000x525 PRAMAC

TRANSPALET ELECTRIC

LIFTER PRAMAC CX14 (II ED.) AC EVO AGM 1000X525

BEST PERFORMANCE IN ITS CATEGORY

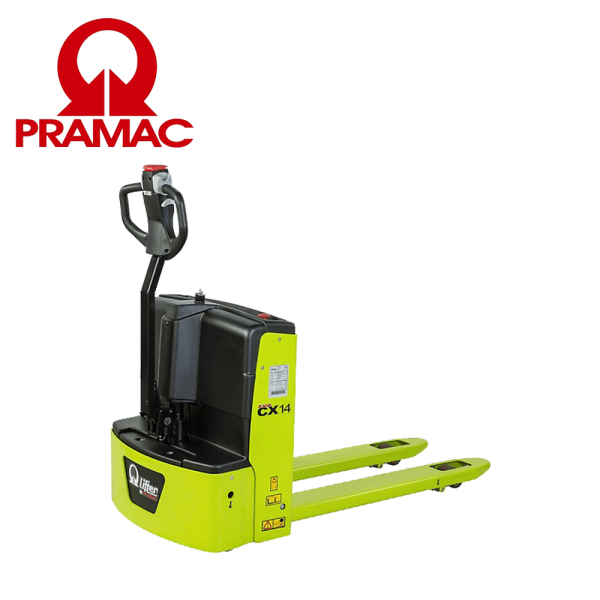

ELECTRIC PALLET TRUCK - CX14

The new CX14 electric pallet trucks are compact, lightweight and easy to use. They have been specifically designed for use in confined spaces within rail, shops, supermarkets and on-board delivery vehicles.

These simple and efficient pallet trucks are built to last and are perfect for all your pedestrian material handling needs.

CX14 EVO AGM

The EVO version is equipped with powerful batteries AGM deep cycles, the biggest in the category, which ensure longer endurance and greater number of charging cycles.

It is built with an ergonomic tiller that offers a comfortable grip and includes battery status indicator with hour meter. The new permanent magnetic AC drive system increases the performance, reduces sound emissions and minimises energy consumption as well as maintenance costs.

MANOEUVRABILITY

• Short chassis dimension (L2 = 410 mm) to offer improved manoeuvrability in confined spaces.

• Compact design perfect for working in narrow areas and corridors, featuring a tighter turning radius (Wa = 1345 mm) for faster pinwheeling and easier navigation in congested spaces.

• Smooth rounded fork tips and entry/exit rollers to optimize pallet handling.

RELIABILITY

• Robust frame (metal motor wheel protection 6 mm thick) designed to guarantee maximum durability and resistance to torsion and heavy loads.

• Battery discharge indicator to allow easy management.

• Easy access to electrical components for maintenance.

PRODUCTIVITY

• Strong ABS cover with storage tray on top, easily removable for simple access to batteries and key components speeding-up maintenance operations.

• BOOST switch allows two levels of travel speed (up to 6 km/h) according to operator experience and application environment.

• Easy access to the motorwheel components through dedicated inspection opening.

• Schuko plug with spiral cable and on board battery charger.

INTELLIGENT TILLER

Ergonomic tiller designed for both left and right handed operation.

• Butterfly valves for traction control.

• Safety push button with warning buzzer.

• Forks way up/down control positioned on both sides of the handle and BOOST button.

• Turtle function for moving in tight areas with the handle in vertical position while remaining almost within the profile of the machine.

TURTLE MODE SWITCH

Offered as standard, this function enables operating the truck in confined spaces: it allows the unit to travel with the tiller in upright position.

This function is activated by pressing the turtle button on the tiller and rotating the drive control throttle. The truck travels at limited speed.

Release the button to disable this function.

BATTERY CHARGER

Built-in battery charger provides a convenient charging solution and eliminates the need to remove the battery from the machine.

TRACTION & SAFETY

Traction is granted by the biggest heavy-duty stabilizer wheels (100x40 mm) in the category, with heavy duty spring. All linkage connection done through bushings that increase stability and durability.

ROLLERS

Standard configuration provided with single polyurethane rollers. Available tandem rollers as optional.

Descriere

1.1 Producător PR

INDUSTRIAL

Stivuitor ELECTRICĂ

1.3 Comandă ELECTRICĂ

1.4 Poziţie operare Pedestru

1.5 Capacitate maximă Q Kg 1400

1.6 Distanţa la centrul de aplicare al sarcinii c mm 500

1.8 Sarcina de la osie la capătul furcilor x mm 785

1.9 Ampatament y mm 1046

Greutăţi

2.1 Greutate de operare (acumulator inclus) Kg 252

2.2 Sarcină osie, încărcare pe spate Kg 1060

2.2 Sarcină osie, încărcare pe faţă Kg 592

2.3 Sarcină osie, liber faţă Kg 207

2.3 Sarcină osie, liber spate Kg 45

Cauciucuri/Şasiuri

3.1 Cauciucuri: roţi direcţie CAUCIUC

3.1 Cauciucuri: roţi stabilizatoare - Faţă POLY.C.

3.1 Cauciucuri: transportoare cu role POLY.C.

3.2 Mărime cauciuc: roţi direcţie - Lăţime mm 76

3.2 Mărime cauciuc: roţi direcţie - Diametru mm 250

3.3 Mărime cauciuc: transportoare cu role - Diametru mm 82

3.3 Mărime cauciuc: transportoare cu role - Lăţime mm 80

3.4 Mărime cauciuc: roţi stabilizatoare faţă - Diametru mm 100

3.4 Mărime cauciuc: roţi stabilizatoare faţă - Lăţime mm 40

3.5 Dimensiune cauciuc: roti spate nr 2

3.5 Dimensiune cauciuc: roti fata nr 1x

3.6 Ecartament, faţă b10 mm 530

3.7 Ecartament, spate b11 mm 375

Dimensiuni

4.4 Înălţime stivuitor h3 mm 115

4.9 Înălţime manetă în poziţia de deplasare, max h14 mm 1238

4.9 Height of tiller in drive position min h14 mm 725

4.15 Înălţime, coborât h13 mm 85

4.19 Lungime globală l1 mm 1410

4.20 Distanţa până la suprafaţa frontală a furcilor l2 mm 410

4.21 Lăţime globală b1 mm 720

4.22 Dimensiuni furcă - grosime s mm 55

4.22 Dimensiuni furcă - Lăţime e mm 150

4.22 Dimensiuni furcă - Lungime l mm 1000

4.25 Distanţa între furci b5 mm 525

4.32 Gardă la sol şi mijloc ampatament m2 mm 30

4.34 Lăţime culoar Ast mm 1610

4.35 Rază de virare Wa mm 1195

Performante

5.1 Viteză de deplasare cu incarcare Km/h 6

5.1 Viteză de deplasare fără incarcare Km/h 6

5.10 Frână de serviciu REVERSE

CURRENT

BRAKING

Motoare electrice

6.6 Consum de energie în ciclu VDI kWh/h 0.28

8.4 Nivel sonor la nivelul urechii şoferului dB(A) 59
