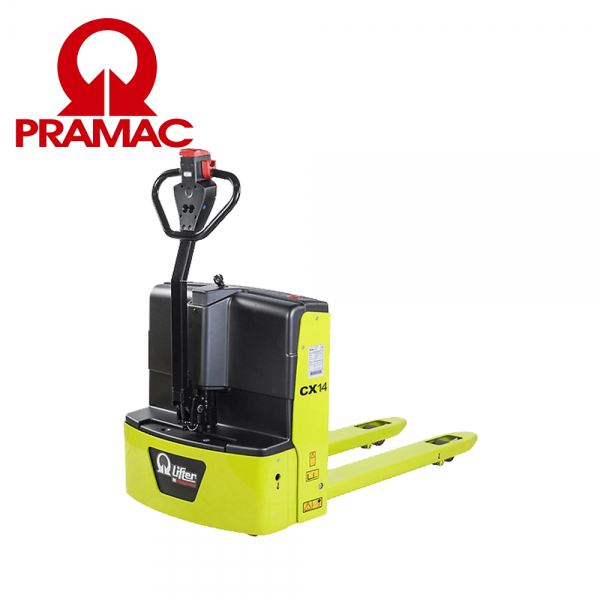

Transpalet electric profesional CX14 BASIC S2 800x525 PRAMAC

TRANSPALET ELECTRIC

PROFESIONAL LIFTER PRAMAC CX14 (II ED.) BASIC 800X525

LIZA ELECTRICA PROFESIONALA LIFTER PRAMAC

SMALL SIZE, GREAT MANOEUVRABILITY

ELECTRIC PALLET TRUCK - CX14

The new CX14 electric pallet trucks are compact, lightweight and easy to use. They have been specifically designed for use in confined spaces within rail, shops, supermarkets and on-board delivery vehicles.

These simple and efficient pallet trucks are built to last and are perfect for all your pedestrian material handling needs.

BASIC VERSION

The BASIC version is equipped with:

• Starting type battery

• Tiller made with metal tube and ergonomic fingertip controls

• Reliable DC drive system

A configuration that offers best value for money.

MANOEUVRABILITY

• Short chassis dimension (L2 = 410 mm) to offer improved manoeuvrability in confined spaces.

• Compact design perfect for working in narrow areas and corridors, featuring a tighter turning radius (Wa = 1345 mm) for faster pinwheeling and easier navigation in congested spaces.

• Smooth rounded fork tips and entry/exit rollers to optimize pallet handling.

RELIABILITY

• Robust frame (metal motor wheel protection 6 mm thick) designed to guarantee maximum durability and resistance to torsion and heavy loads.

• Battery discharge indicator to allow easy management.

• Easy access to electrical components for maintenance.

PRODUCTIVITY

• Strong ABS cover with storage tray on top, easily removable for simple access to batteries and key components speeding-up maintenance operations.

• Easy access to the motorwheel components through dedicated inspection opening.

• Schuko plug with spiral cable and on board battery charger.

INTELLIGENT TILLER

• Ergonomic tiller designed for both left and right handed operation.

• Butterfly valves for traction control.

• Safety push button with warning buzzer.

• Turtle function for moving in tight areas with the handle in vertical position while remaining almost within the profile of the machine.

TURTLE MODE SWITCH

Offered as standard, this function enables operating the truck in confined spaces: it allows the unit to travel with the tiller in upright position.

This function is activated by pressing the turtle button on the tiller and rotating the drive control throttle. The truck travels at limited speed.

Release the button to disable this function.

ON-BOARD BATTERY CHARGER

Built-in battery charger provides a convenient charging solution and eliminates the need to remove the battery from the machine.

TRACTION & SAFETY

Traction is granted by the biggest heavy-duty stabilizer wheels (100x40 mm) in the category, with heavy duty spring. All linkage connection done through bushings that increase stability and durability.

ROLLERS

Standard configuration provided with single polyurethane rollers. Available tandem rollers as optional.

Descriere

1.1 Producător PR

INDUSTRIAL

Stivuitor ELECTRICĂ

1.3 Comandă ELECTRICĂ

1.4 Poziţie operare Pedestru

1.5 Capacitate maximă Q Kg 1400

1.6 Distanţa la centrul de aplicare al sarcinii c mm 400

1.8 Sarcina de la osie la capătul furcilor x mm 585

1.9 Ampatament y mm 846

Greutăţi

2.1 Greutate de operare (acumulator inclus) Kg 214

2.2 Sarcină osie, încărcare pe spate Kg 1131

2.2 Sarcină osie, încărcare pe faţă Kg 484

2.3 Sarcină osie, liber faţă Kg 174

2.3 Sarcină osie, liber spate Kg 41

Cauciucuri/Şasiuri

3.1 Cauciucuri: roţi direcţie CAUCIUC

3.1 Cauciucuri: roţi stabilizatoare - Faţă POLY.C.

3.1 Cauciucuri: transportoare cu role POLY.C.

3.2 Mărime cauciuc: roţi direcţie - Lăţime mm 76

3.2 Mărime cauciuc: roţi direcţie - Diametru mm 250

3.3 Mărime cauciuc: transportoare cu role - Diametru mm 82

3.3 Mărime cauciuc: transportoare cu role - Lăţime mm 80

3.4 Mărime cauciuc: roţi stabilizatoare faţă - Diametru mm 100

3.4 Mărime cauciuc: roţi stabilizatoare faţă - Lăţime mm 40

3.5 Dimensiune cauciuc: roti spate nr 2

3.5 Dimensiune cauciuc: roti fata nr 1x

3.6 Ecartament, faţă b10 mm 530

3.7 Ecartament, spate b11 mm 375

Dimensiuni

4.4 Înălţime stivuitor h3 mm 115

4.9 Înălţime manetă în poziţia de deplasare, max h14 mm 1230

4.9 Height of tiller in drive position min h14 mm 730

4.15 Înălţime, coborât h13 mm 85

4.19 Lungime globală l1 mm 1210

4.20 Distanţa până la suprafaţa frontală a furcilor l2 mm 410

4.21 Lăţime globală b1 mm 720

4.22 Dimensiuni furcă - grosime s mm 55

4.22 Dimensiuni furcă - Lăţime e mm 150

4.22 Dimensiuni furcă - Lungime l mm 800

4.25 Distanţa între furci b5 mm 525

4.32 Gardă la sol şi mijloc ampatament m2 mm 30

4.34 Lăţime culoar Ast mm 1410

4.35 Rază de virare Wa mm 995

Performante

5.1 Viteză de deplasare cu incarcare Km/h 4.4

5.1 Viteză de deplasare fără incarcare Km/h 4.8

5.10 Frână de serviciu REVERSE

CURRENT

BRAKING

Motoare electrice

6.6 Consum de energie în ciclu VDI kWh/h 0.25

8.4 Nivel sonor la nivelul urechii şoferului dB(A) 59
