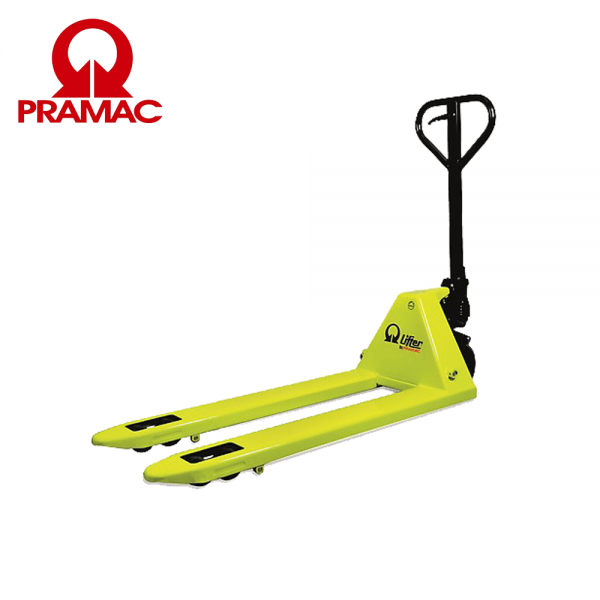

TRANSPALET MANUAL, GS/L BASIC 22S4 1000X685

Entry level hand pallet truck (2.200 kg)

GS BASIC

The GS Basic pallet truck is the entry model of the Lifter hand pallet truck range, featuring reliability and solidness at competitive pricing.

HYDRAULIC UNIT

Resistant and reliable one piece cast iron pump, worked with numerical control machine, including:

• Maximum pressure valve: safety device that ensures the transpallet against overloads.

When the pressure inside the hydraulic circuit exceeds the set calibration value according to the maximum nominal flow, the valve automatically locks the forks.

• ON/OFF lowering valve

STANDARD CONFIGURATION

• Nylon - Poly 45 steering wheels

• Nylon rollers

• 2 Curves handle with all the controls (lowering / drive position / lifting) available in a single lever for simple and safe control

VARNISHING

Following an appropriate conditioning operation the frame is varnished with polyester powder at a temperature of 250° to guarantee maximum resistance to wear and atmospheric agents.

OPTIONAL CONFIGURATION

• Nylon steering wheels

• Nylon - Poly 55 steering wheels

• Aluminium - Rubber steering wheels

• Polyurethane rollers

• Manual control brake. The brake of the pallet truck, available with rubber steering wheels, is adjustable through the tiller lever to ensure safe use on slopes and ramps.

The locking function makes it possible to park the pallet truck even on slopes without rolling away.

Descriere

1.1 Producător LIFTER

1.3 Comandă Manual

1.4 Poziţie operare Pedestru

1.5 Capacitate maximă Q Kg 2200

1.6 Distanţa la centrul de aplicare al sarcinii c mm 500

1.8 Sarcina de la osie la capătul furcilor x mm 782

1.9 Ampatament y mm 1042

Greutăţi LIZA MANUALA

2.1 Greutate de operare Kg 66

2.2 Sarcină osie, încărcare pe spate Kg 1583

2.2 Sarcină osie, încărcare pe faţă Kg 683

2.3 Sarcină osie, liber spate Kg 21

2.3 Sarcină osie, liber faţă Kg 45

Cauciucuri/Şasiuri

3.2 Mărime cauciuc: roţi direcţie - Diametru mm 200

3.2 Mărime cauciuc: roţi direcţie - Lăţime mm 45

3.3 Mărime cauciuc: transportoare cu role - Diametru mm 82

3.3 Mărime cauciuc: transportoare cu role - Lăţime mm 60

3.5 Dimensiune cauciuc: roti spate nr 4

3.5 Ax de echilibru spate No

3.6 Ecartament, faţă b10 mm 155

3.7 Ecartament, spate b11 mm 535

Dimensiuni LIZA MANUALA

4.4 Înălţime stivuitor h3 mm 115

4.9 Înălţime manetă în poziţia de deplasare, max h14 mm 1160

4.15 Înălţime, coborât h13 mm 85

4.19 Lungime globală l1 mm 1400

4.20 Distanţa până la suprafaţa frontală a furcilor l2 mm 400

4.21 Lăţime globală b1 mm 685

4.22 Dimensiuni furcă - grosime s mm 55

4.22 Dimensiuni furcă - Lăţime e mm 150

4.22 Dimensiuni furcă - Lungime l mm 1000

4.25 Distanţa între furci b5 mm 685

4.32 Gardă la sol şi mijloc ampatament m2 mm 30

4.34 Lăţime culoar Ast mm 1635

4.35 Rază de virare Wa mm 1217

Performante LIZA MANUALA

5.2 Viteză de ridicare, încărcat strokes 13

5.2 Viteză de ridicare, descărcat strokes 13
