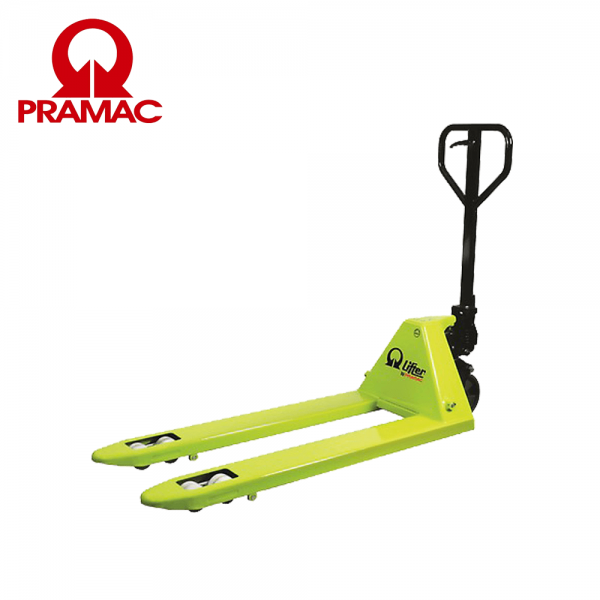

Transpalet GS PRO 25S2-RA 1000x525 mm

Liza profesionala

Din categoria de lize profesionale Pramac, model; GS PRO 25S2 1000X525

Professional hand pallet truck (2.500 kg)

LIFTER GS PRO

The GS PRO Series is an excellent tool for lifting and carrying loads on pallets or sizestandardised containers, thanks to its lightweight, smooth movement and manoeuvrability.

HYDRAULIC UNIT

Resistant and reliable one piece cast iron pump, worked with numerical control machine, including:

• MAXIMUM PRESSURE VALVE: safety device that ensures the transpallet against overloads. When the pressure inside the hydraulic circuit exceeds the set calibration value according to the maximum nominal flow, the valve automatically locks the forks.

• PROPORTIONAL LOWERING VALVE: lowering speed can be proportionally controlled according to the lever position on the tiller. Perfect working tool to carry fragile and delicate loads like crystal, glass and ceramics.

VARNISHING

Following an appropriate conditioning operation the frame is varnished with polyester powder at a temperature of 250° to guarantee maximum resistance to wear and atmospheric agents.

STANDARD CONFIGURATION

• Nylon - Poly 55 steering wheels

• Nylon rollers

• 4 Curves handle with all the controls (lowering / drive position / lifting) available in a single lever for simple and safe control

• Entry/exit rollers. Supplementary rollers to allow easier entrance and quicker exit from a closed pallet, reducing the impact on the main rollers and guaranteeing a longer life.

OPTIONAL CONFIGURATION

• Nylon steering wheels

• Aluminium - Poly steering wheels

• Aluminium - Rubber steering wheels

• Polyurethane rollers

• 4 Curves ergonomic handle. The soft rubber covering aids operator comfort and helps to reduce vibration, enabling a more comfortable and secure grip.

• Manual control brake. The brake of the pallet truck, available with rubber steering wheels, is adjustable through the tiller lever to ensure safe use on slopes and ramps.

The locking function makes it possible to park the pallet truck even on slopes without rolling away.

• Quick lift. The perfect tool to lift quicker your loads up to 150 kg. The hydraulic pump is specifically engineered to cut job time and increase efficiency. It takes just 6 strokes to raise a pallet to full height, instead of 13 with the traditional HPT.

Descriere

1.1 Producător LIFTER

1.3 Comandă Manual

1.4 Poziţie operare Pedestru

1.5 Capacitate maximă Q Kg 2500

1.6 Distanţa la centrul de aplicare al sarcinii c mm 500

1.8 Sarcina de la osie la capătul furcilor x mm 782

1.9 Ampatament y mm 1042

Greutăţi

2.1 Greutate de operare Kg 58

2.2 Sarcină osie, încărcare pe spate Kg 1795

2.2 Sarcină osie, încărcare pe faţă Kg 763

2.3 Sarcină osie, liber spate Kg 20

2.3 Sarcină osie, liber faţă Kg 38

Cauciucuri/Şasiuri

3.1 Cauciucuri: roţi direcţie POLY.I./

NYLON

3.1 Cauciucuri: transportoare cu role NYLON

3.2 Mărime cauciuc: roţi direcţie - Diametru mm 200

3.2 Mărime cauciuc: roţi direcţie - Lăţime mm 55

3.3 Mărime cauciuc: transportoare cu role - Diametru mm 82

3.3 Mărime cauciuc: transportoare cu role - Lăţime mm 82

3.5 Dimensiune cauciuc: roti spate nr 2

3.5 Ax de echilibru spate No

3.6 Ecartament, faţă b10 mm 155

3.7 Ecartament, spate b11 mm 375

Dimensiuni

4.4 Înălţime stivuitor h3 mm 115

4.9 Înălţime manetă în poziţia de deplasare, max h14 mm 1160

4.15 Înălţime, coborât h13 mm 85

4.19 Lungime globală l1 mm 1400

4.20 Distanţa până la suprafaţa frontală a furcilor l2 mm 400

4.21 Lăţime globală b1 mm 525

4.22 Dimensiuni furcă - grosime s mm 55

4.22 Dimensiuni furcă - Lăţime e mm 150

4.22 Dimensiuni furcă - Lungime l mm 1000

4.25 Distanţa între furci b5 mm 525

4.32 Gardă la sol şi mijloc ampatament m2 mm 30

4.34 Lăţime culoar Ast mm 1635

4.35 Rază de virare Wa mm 1217

Performante

5.2 Viteză de ridicare, încărcat strokes 13

5.2 Viteză de ridicare, descărcat strokes 13
