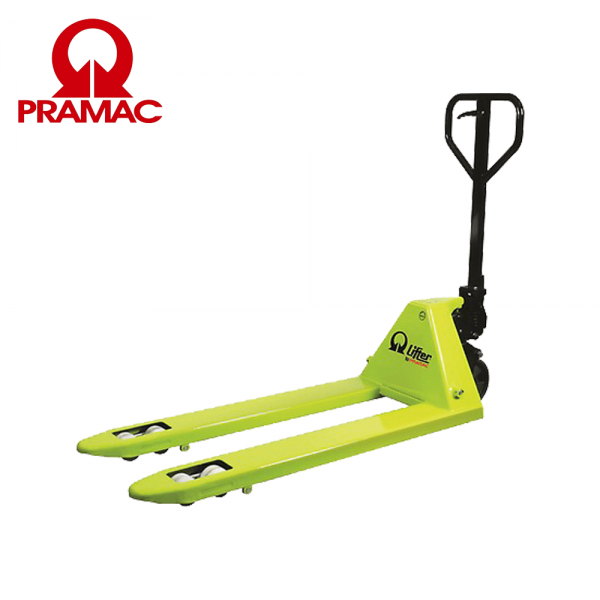

Transpalet GS L PRO 30S4 RA 1150x685 mm

LIZA TRANSPALET

LIFTER PRAMAC MODEL GS/L PRO 30S4 1150X685

Heavy loads hand pallet truck (3.000 kg)

LIFTER GS PRO 30

Extremely tough and resistant hand pallet truck for heavy duty applications, with lifting capacity up to 3.000 kg.

REINFORCED STRUCTURE

Steel bars welded under the forks, solid tie-rod as well as a base with thick metal sheet allow the GS 30 to easily handle the heaviest loads.

HYDRAULIC UNIT

Resistant and reliable one piece cast iron pump, worked with numerical control machine, including:

• MAXIMUM PRESSURE VALVE: safety device that ensures the transpallet against overloads. When the pressure inside the hydraulic circuit exceeds the set calibration value according to the maximum nominal flow, the valve automatically locks the forks.

• PROPORTIONAL LOWERING VALVE: lowering speed can be proportionally controlled according to the lever position on the tiller. Perfect working tool to carry fragile and delicate loads like crystal, glass and ceramics.

VARNISHING

Following an appropriate conditioning operation the frame is varnished with polyester powder at a temperature of 250° to guarantee maximum resistance to wear and atmospheric agents.

STANDARD CONFIGURATION

• Nylon - Poly 55 steering wheels

• Nylon rollers

• 4 Curves handle with all the controls (lowering / drive position / lifting) available in a single lever for simple and safe control

• Entry/exit rollers. Supplementary rollers to allow easier entrance and quicker exit from a closed pallet, reducing the impact on the main rollers and guaranteeing a longer life.

OPTIONAL CONFIGURATION

• Nylon steering wheels

• Aluminium - Poly steering wheels

• Aluminium - Rubber steering wheels

• Polyurethane rollers

• 4 Curves ergonomic handle. The soft rubber covering aids operator comfort and helps to reduce vibration, enabling a more comfortable and secure grip.

• Manual control brake. The brake of the pallet truck, available with rubber steering wheels, is adjustable through the tiller lever to ensure safe use on slopes and ramps.

The locking function makes it possible to park the pallet truck even on slopes without rolling away.

• Quick lift. The perfect tool to lift quicker your loads up to 150 kg. The hydraulic pump is specifically engineered to cut job time and increase efficiency. It takes just 6 strokes to raise a pallet to full height, instead of 13 with the traditional HPT.

Descriere

1.1 Producător LIFTER

1.3 Comandă Manual

1.4 Poziţie operare Pedestru

1.5 Capacitate maximă Q Kg 3000

1.6 Distanţa la centrul de aplicare al sarcinii c mm 600

1.8 Sarcina de la osie la capătul furcilor x mm 932

1.9 Ampatament y mm 1192

Greutăţi

2.1 Greutate de operare Kg 93

2.2 Sarcină osie, încărcare pe spate Kg 2198

2.2 Sarcină osie, încărcare pe faţă Kg 895

2.3 Sarcină osie, liber spate Kg 31

2.3 Sarcină osie, liber faţă Kg 62

Cauciucuri/Şasiuri

3.1 Cauciucuri: roţi direcţie POLY.I./

NYLON

3.1 Cauciucuri: transportoare cu role NYLON

3.2 Mărime cauciuc: roţi direcţie - Diametru mm 200

3.2 Mărime cauciuc: roţi direcţie - Lăţime mm 55

3.3 Mărime cauciuc: transportoare cu role - Diametru mm 82

3.3 Mărime cauciuc: transportoare cu role - Lăţime mm 60

3.5 Dimensiune cauciuc: roti spate nr 4

3.5 Ax de echilibru spate No

3.6 Ecartament, faţă b10 mm 155

3.7 Ecartament, spate b11 mm 535

Dimensiuni

4.4 Înălţime stivuitor h3 mm 115

4.9 Înălţime manetă în poziţia de deplasare, max h14 mm 1160

4.15 Înălţime, coborât h13 mm 85

4.19 Lungime globală l1 mm 1550

4.20 Distanţa până la suprafaţa frontală a furcilor l2 mm 400

4.21 Lăţime globală b1 mm 685

4.22 Dimensiuni furcă - grosime s mm 50

4.22 Dimensiuni furcă - Lăţime e mm 150

4.22 Dimensiuni furcă - Lungime l mm 1150

4.25 Distanţa între furci b5 mm 685

4.32 Gardă la sol şi mijloc ampatament m2 mm 35

4.34 Lăţime culoar Ast mm 1835

4.35 Rază de virare Wa mm 1367

Performante

5.2 Viteză de ridicare, încărcat strokes
